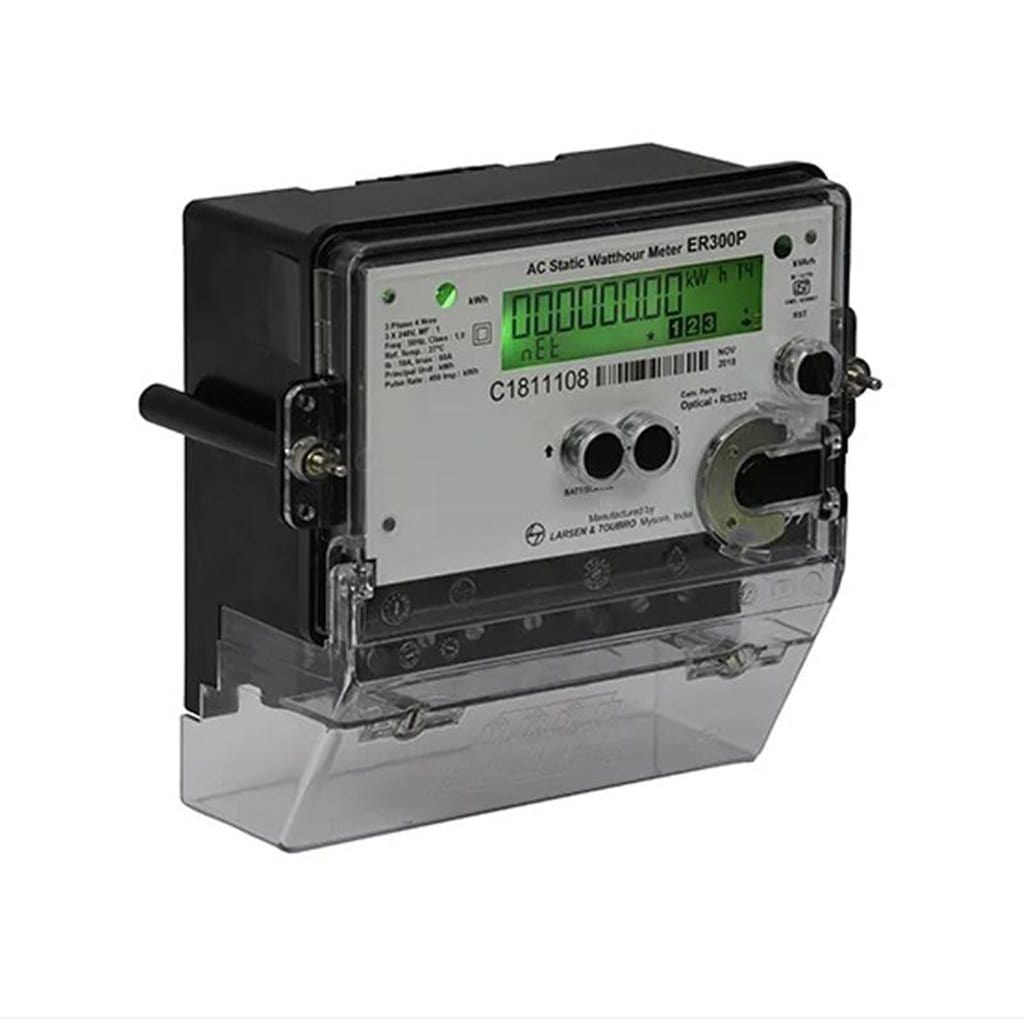

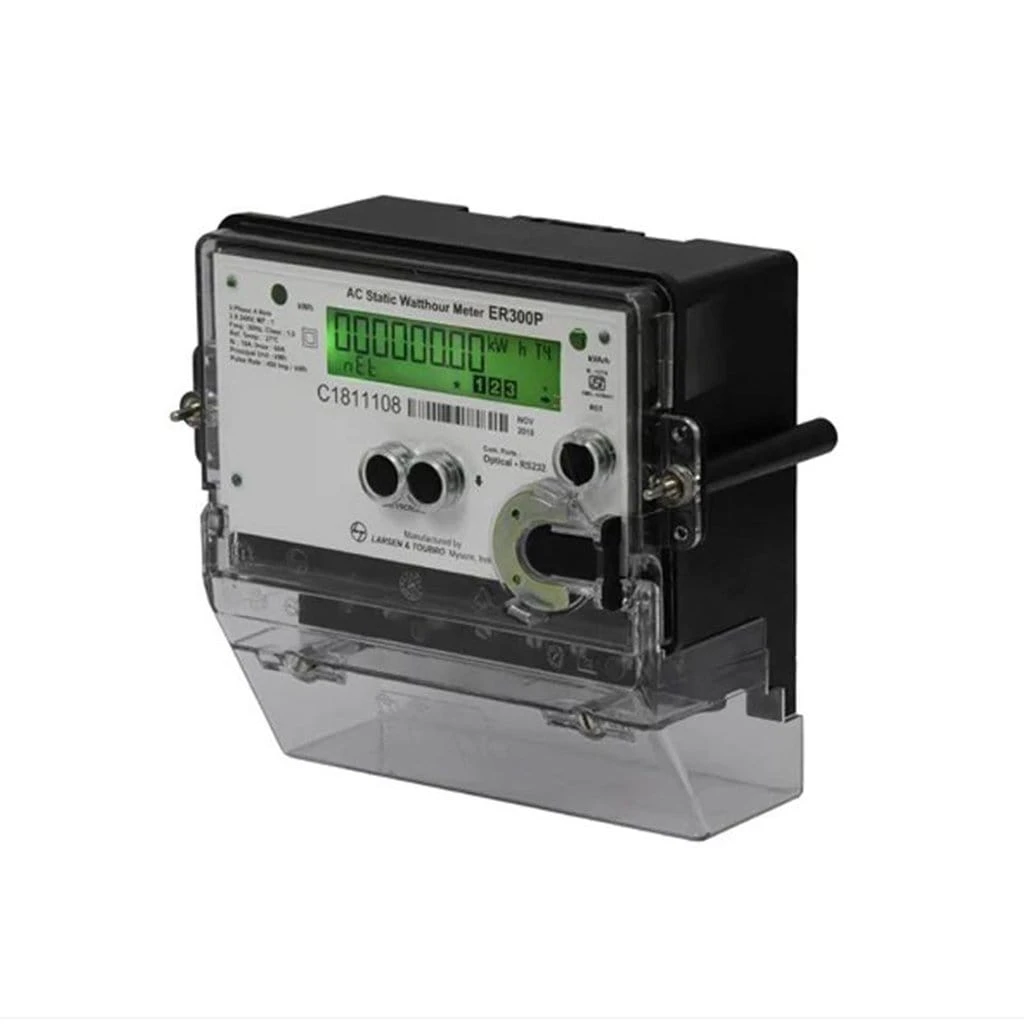

Net Meter for 5 kW – 10 kW, 3 phase grid connected solar system

Original price was: ₹25,000.00.Current price is: ₹15,000.00.

L&T Metering provides accurate and reliable solutions for residential and Commercial meters. Three Phase Net meter is the integral component of grid connected solar system which shows the net consumption of power in the house. It indicates the difference between what is exported and imported from the grid.

Original price was: ₹25,000.00.Current price is: ₹15,000.00.

Add to cart
Buy Now
Category:

How Does Net Meter Works?

  • They measure rate of production in watts
  • It has 3 displays: 1st test screen, 2nd Power taken from the grid and 3rd power injected into the grid
  • Customers only billed for their NET energy use.
  • Only 20-30% of the energy produced by a Solar System, goes into the grid
  • Net metering policies and rates, vary by state

Features

  • Class 1 accuracy as per IS and IEC standards
  • Indication for power on, current reversal and ELT
  • Reset backups
  • High surge withstand capability
  • Load Survey (Interval Data)
  • Anti-tamper features
  • Optical port / RS 232 port/ Low Power Radio (optional)

Specifications

Connection 3 Phase 4 Wire
Standards Applicable IS 13779, CBIP 325, IEC 62052-11, IEC 62053-21
Accuracy Class CI 1.0
Rated Voltage 3 x 230V / 3 x 240V (P-N)
Voltage Variation -40% to +20%
Current Rating 5-30A, 10 – 40A, 10-60A, 20-100A
Frequency 50Hz
Ingress Protection IP 51

Display

LCD 8 digit backlit display
Display mode Auto scroll, push button and high resolution modes
LED Pulse LED for kWh
