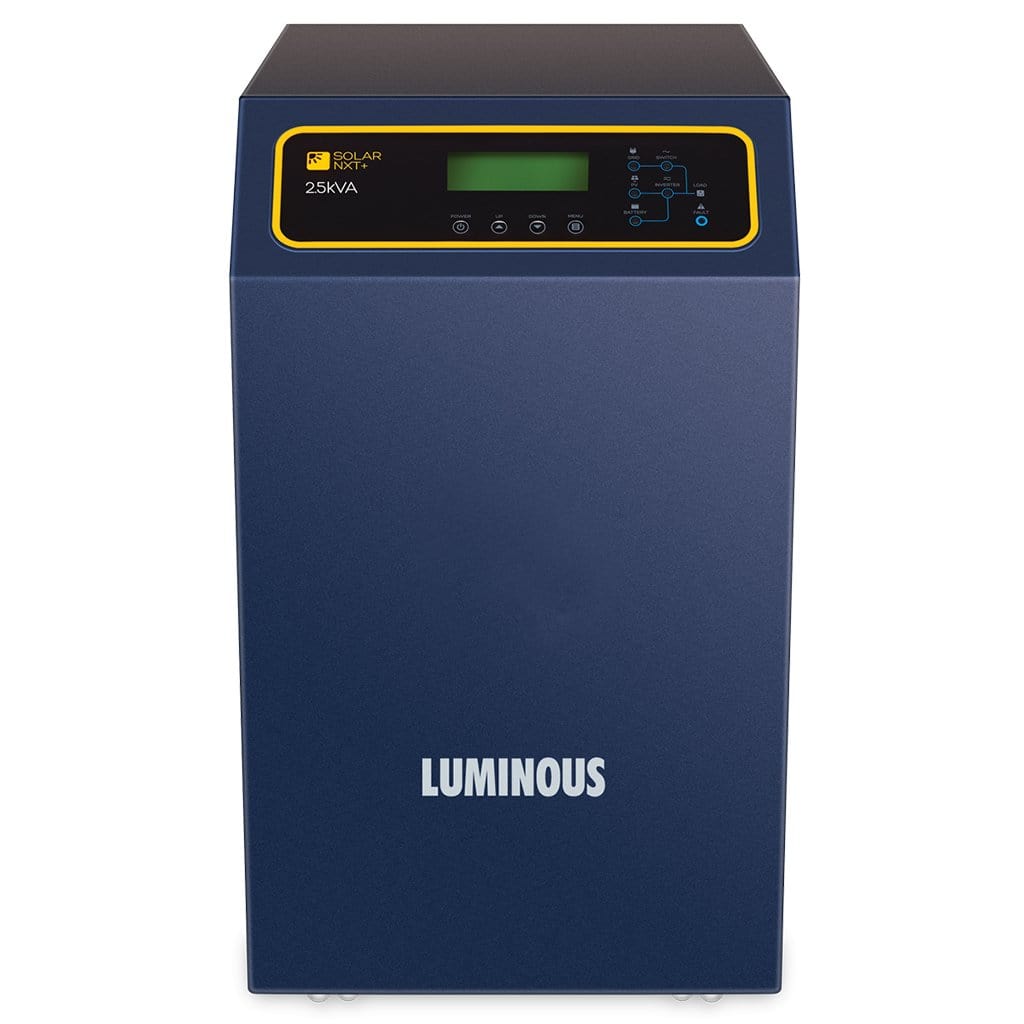

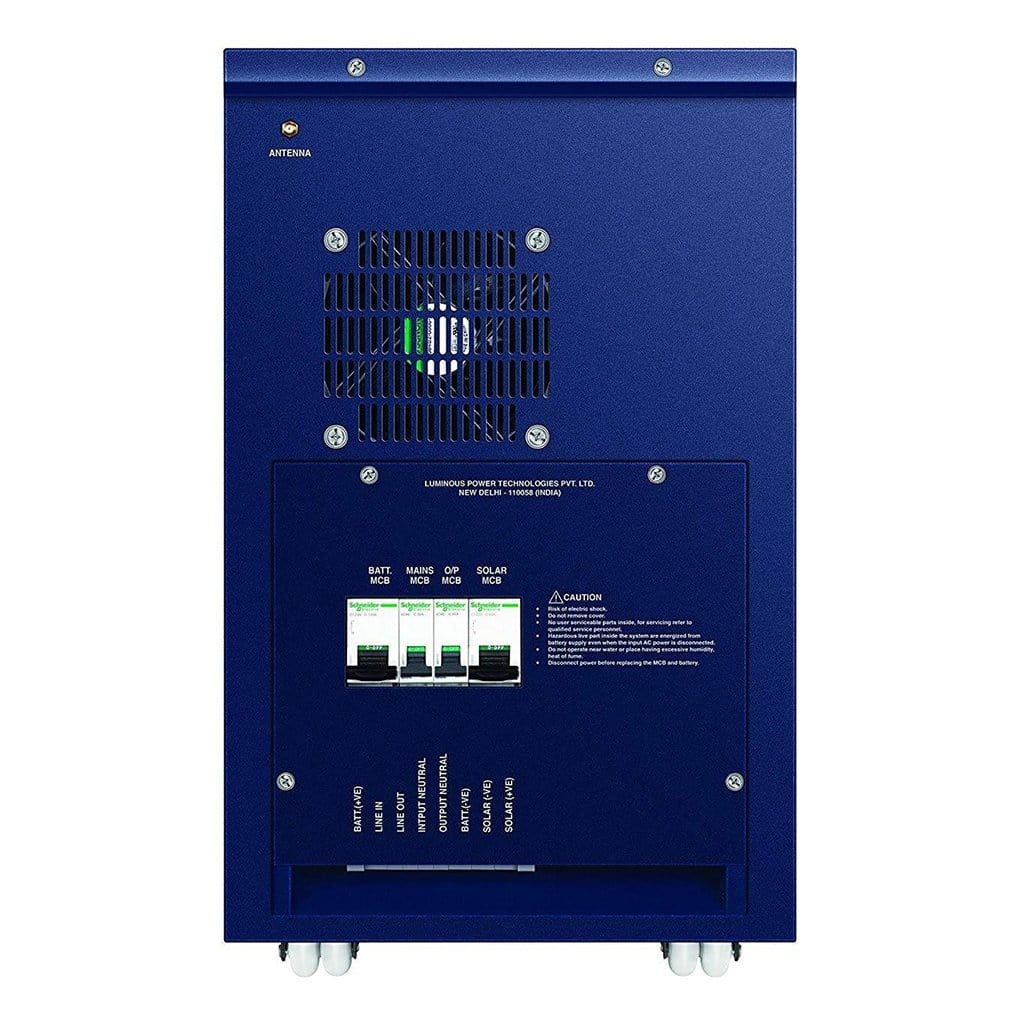

Luminous solar PCU Nxt+ 2.5 kVA off grid hybrid inverter

Original price was: ₹65,000.00.Current price is: ₹41,500.00.

Luminous solar hybrid pcu nxt 2 kW / 2.5 kVA is a power conditioning unit (pcu) that charges the battery from solar panels and runs home appliances on solar during the day. It comes with inbuilt latest technology mppt controller and multiple intutive lcd display.

  • Suitable for big homes / small offices and shops
  • 8-10 units electricity generation a day
  • longer backup during power failure as it works with 4 battery system.

Original price was: ₹65,000.00.Current price is: ₹41,500.00.

Add to cart
Buy Now
Category:

Descriptions

Capacity 2 kW / 2.5 kVA
Technology Sine wave, Mppt
Power Load up to 2 kW mix. of lights, fans, TV, Water motor, Refrigerator etc.
Batteries required 4 Nos. (150 Ah)
Panel Support Up to 2,200 Watts

Technical

Technology Pure Sine wave (latest)
Solar panel current 30 amps
Solar panel voltage (voc) 65 V – 165 V
Charger technology MPPT
Full Battery Recharge Time 10-12 Hrs



Inverter monitoring – Display

Luminous solar inverters are made with customer friendly monitoring system, there are two kinds of display in inverters to monitor functioning of solar power conditioning units.



Led display

  • grid led (green) – grid power is available
  • pv led (green) – solar is available
  • inverter led (green) – inverter is switched on
  • battery led (green)- battery charging (blinking) / battery discharging (led steady),
  • fault led (red) – inverter is faulty



Lcd display

  • battery voltage – charge level of battery
  • load % – power consumption as a % of total inverter power
  • output voltage
  • pv voltage – solar panel generating voltage
  • pv current – solar panel generating power in amps
  • grid voltage – utility grid voltage level
  • grid charging current – amp with which battery is being charged
  • electricity saved – kwh
