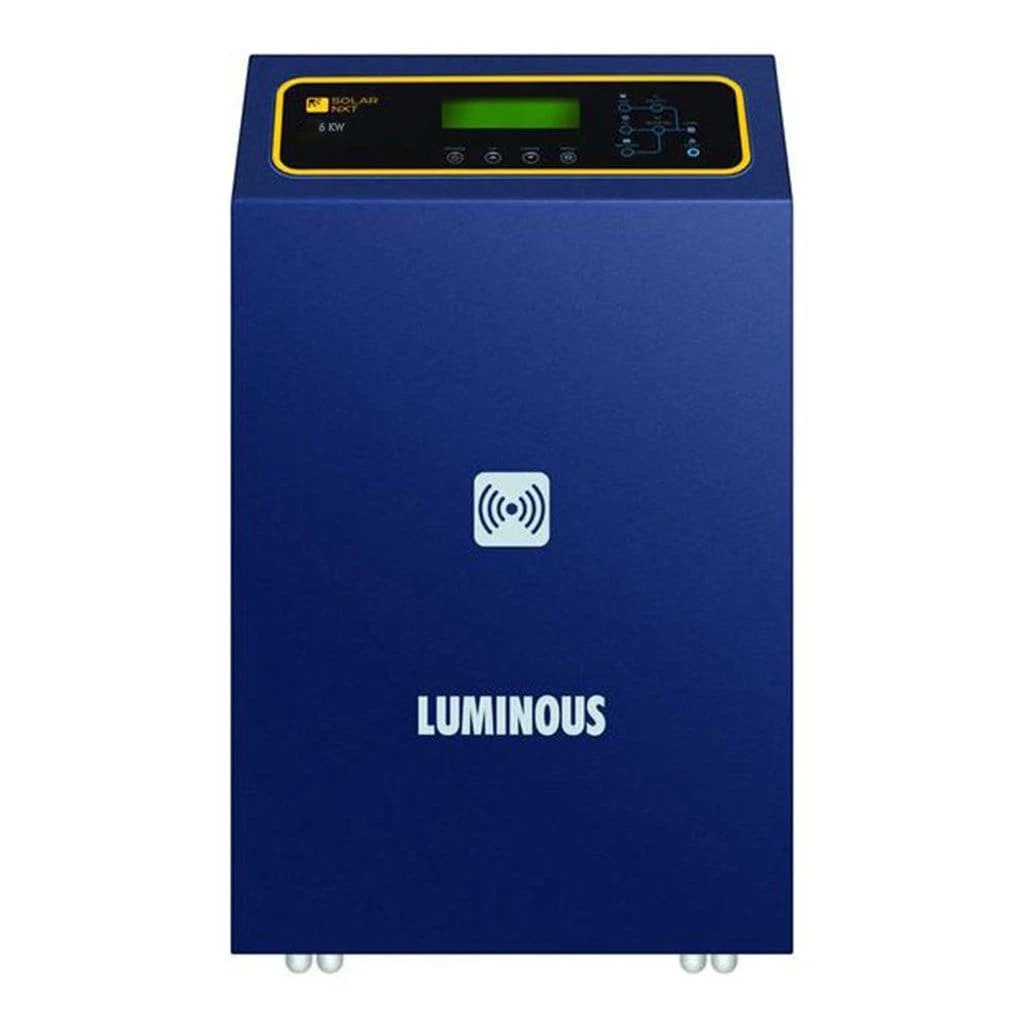

Luminous solar 7.5 KVA off grid hybrid inverter

Original price was: ₹149,900.00.Current price is: ₹75,000.00.

Luminous Solar Power Conditioning Unit (PCU) is a powerful hybrid solar inverter with advanced mppt technology based solar charge controller, Digital display, and purely safe form short-circuits. 6 kW solar PCU is Industrial design, heavy built for running power load such as 1 Air Conditioners and lighting load such as fans, lights, computers, printers, Xerox machine used in home, office and commercial space.

  • conversion efficiency up to 97% through mppt technology
  • Connect solar panels up to 6 kW.
  • Pure Sine wave output and multiple MCBs Protection for safety to connected load.

Original price was: ₹149,900.00.Current price is: ₹75,000.00.

Add to cart
Buy Now
Category:

Features

Capacity 6 kW
Technology Sine wave, Mppt
Power Load 1 Air conditioners, Home appliances such as Light, fan, TV, Laptop, refrigerator and water motor
Batteries required 8 Nos. (150 Ah)



Technical

Technology Sine wave
Solar panel current 46 amps
Solar panel voltage (voc) 160 V – 240 V
Charger technology MPPT
Full Battery Recharge Time 10-12 Hrs



Inverter monitoring – Display

Luminous solar inverters are made with customer friendly monitoring system, there are two kinds of display in inverters to monitor functioning of solar power conditioning units.



Led display

  • grid led (green) – grid power is available
  • pv led (green) – solar is available
  • inverter led (green) – inverter is switched on
  • battery led (green)- battery charging (blinking) / battery discharging (led steady),
  • fault led (red) – inverter is faulty



Lcd display

  • battery voltage – charge level of battery
  • load % – power consumption as a % of total inverter power
  • output voltage
  • pv voltage – solar panel generating voltage
  • pv current – solar panel generating power in amps
  • grid voltage – utility grid voltage level
  • grid charging current – amp with which battery is being charged electricity saved – kwh
