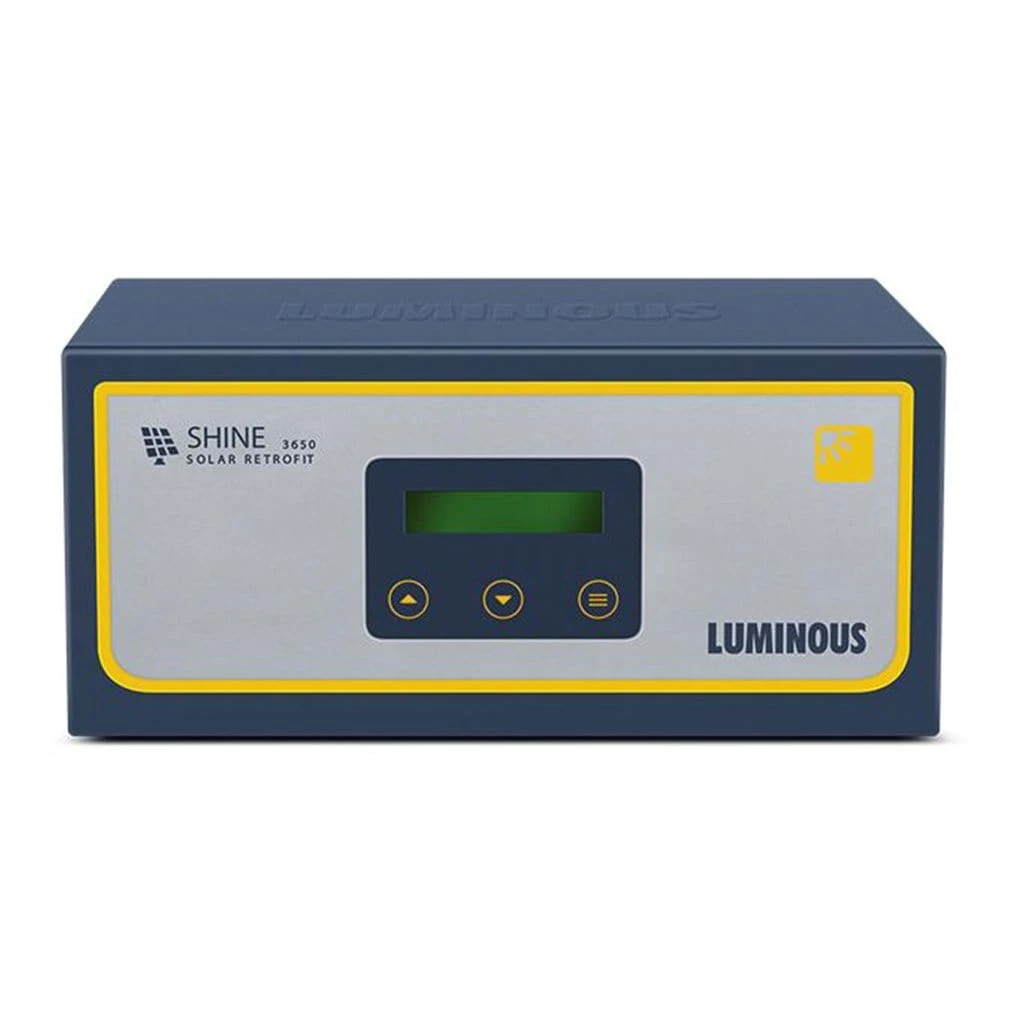

Luminous shine 3650 solar conversion kit 50 amps, 24V / 36 volt charge controller

Original price was: ₹8,200.00.Current price is: ₹5,500.00.

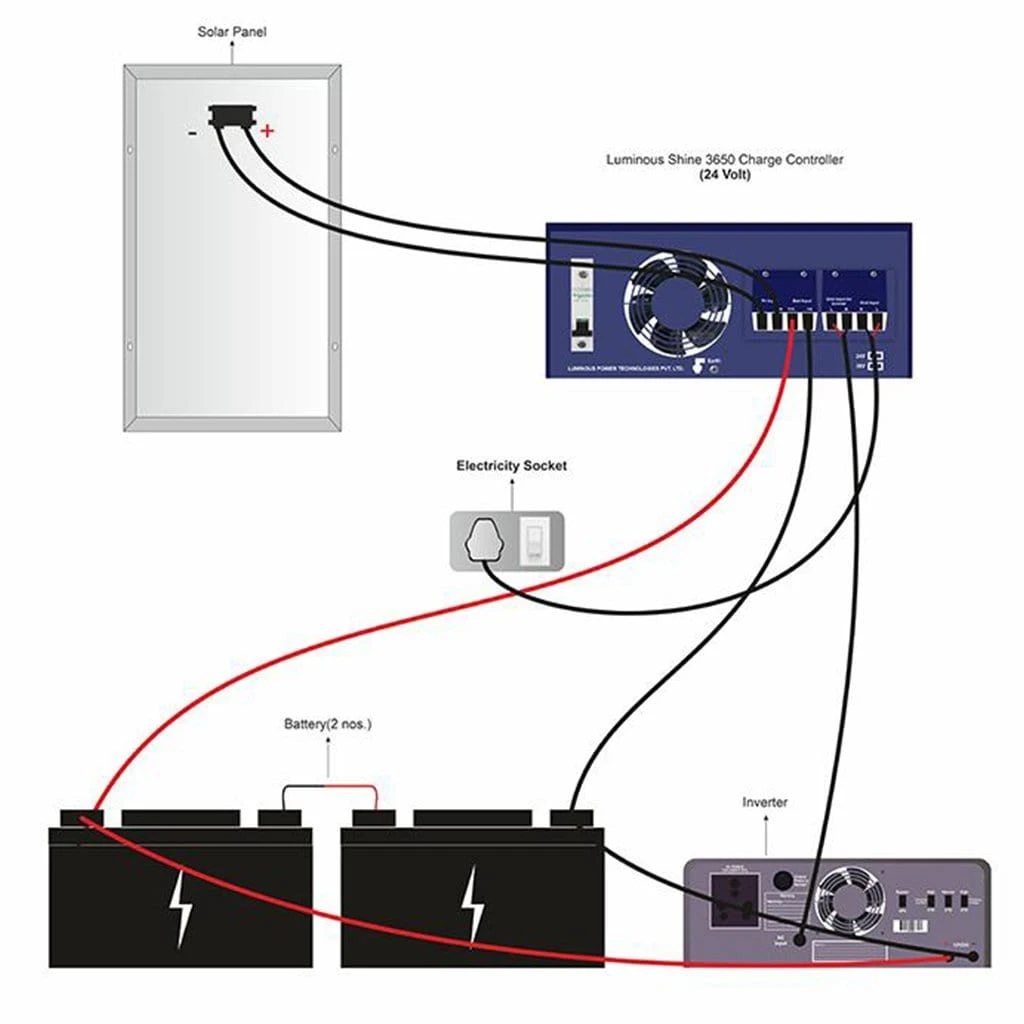

Luminous shine 3650 is latest product launched by Luminous to add up to 2000 watts of solar panel on 2 kVA or 2 battery system inverter. It an upgraded version of solar charge controller which converts conventional inverter into hybrid solar system. i.e. if you already have inverter and battery, By adding suitable solar panel and shine 3650 retrofit, your existing ups / inverter will be converted into solar hybrid inverter. It works with double battery (24V) and tripple battery (36V) Inverter system.



The first priority of shine 3650 is to charge battery, in case of extra power generation, it will run home appliances such as fans, lights directly from solar panel.

Original price was: ₹8,200.00.Current price is: ₹5,500.00.

Add to cart
Buy Now
Category:

Descriptions

Model Name Shine 3650
System rating 50 Amp @ 24 Volt, 36 V
Charging current (max) 50 Amp
Panel Support single battery – 1000 watt

double battery – 2000 Watts
Technolgy pwm
Wire Size (max) 16 square mm



Features

  • solar optimization technique
  • digital lcd display
  • inbuilt reverse polarity & reverse current protection

Technical

  • battery type selection switch
  • four operational modes: auto/manual/charger/100% solar
  • inbuilt protections for short circuit, over voltage and deep discharge

Lcd display

  • battery voltage – charge level of battery
  • load % – power consumption as a % of total inverter power
  • output voltage
  • pv voltage – solar panel generating voltage
  • pv current – solar panel generating power in amps
  • grid voltage – utility grid voltage level
  • grid charging current – amp with which battery is being charged
  • electricity saved – kwh
