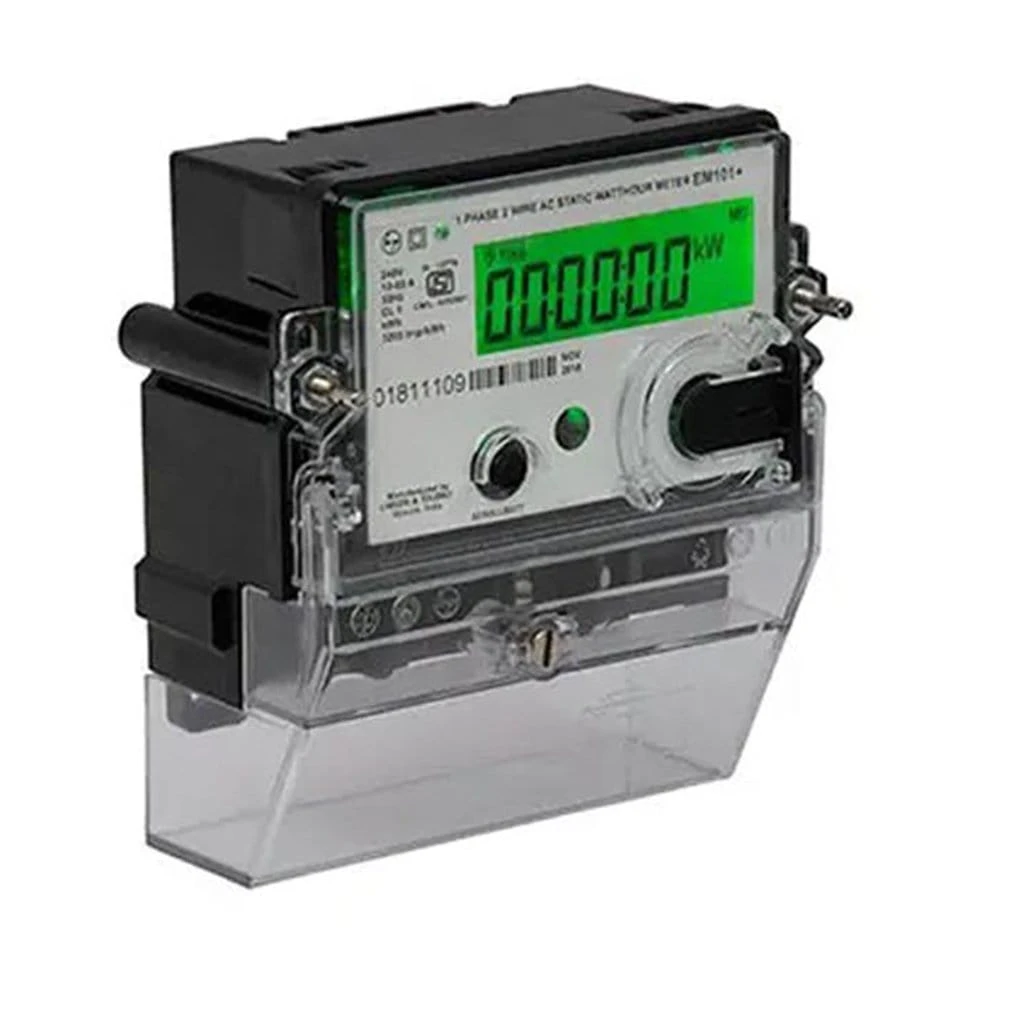

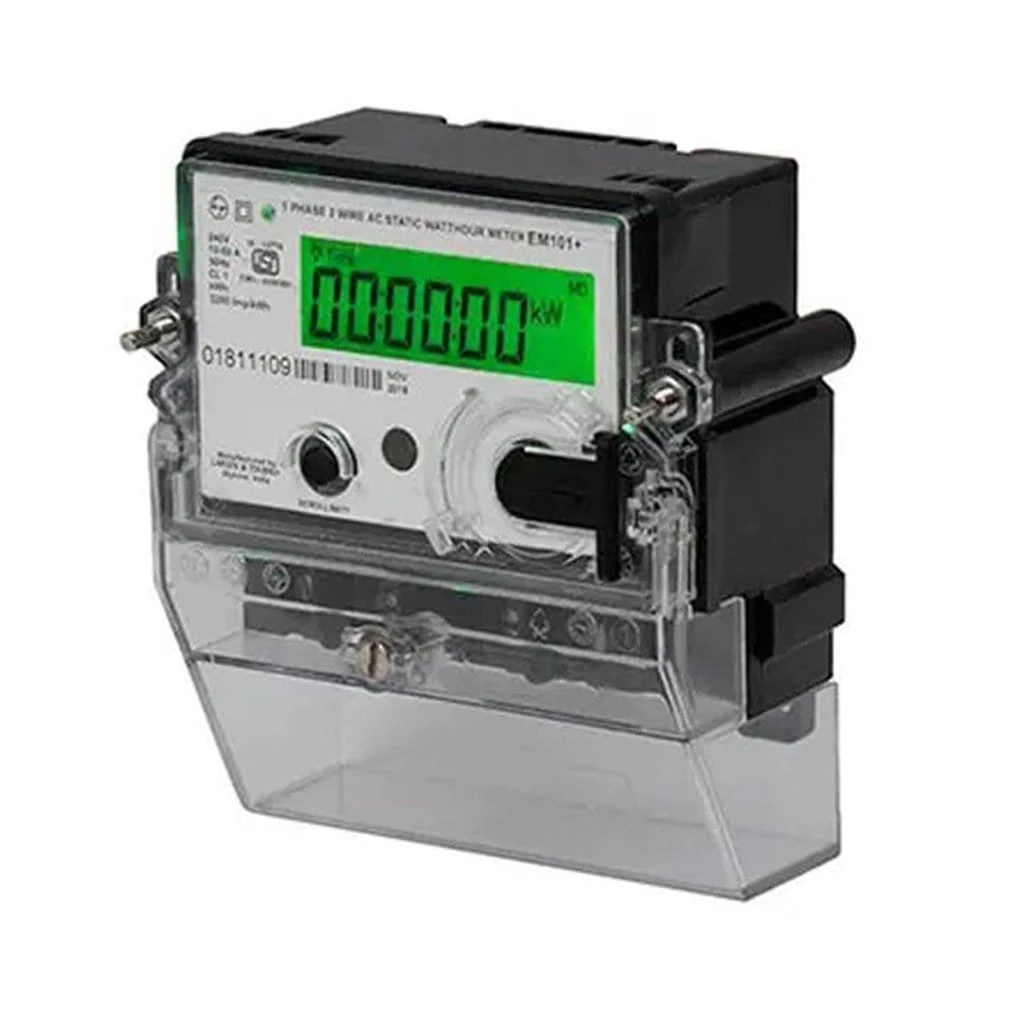

L&T Single Phase Net Meter for 1-3kW Grid Connected Solar System

Original price was: ₹10,000.00.Current price is: ₹7,000.00.

L&T Metering provides accurate and reliable solutions for residential meters. Single Phase Net meter is the integral component of a grid-connected solar system which shows the net consumption of power in the house. It indicates the difference between what is exported and imported from the grid.

Original price was: ₹10,000.00.Current price is: ₹7,000.00.

Add to cart
Buy Now
Category:

How Does Net Meter Works?

  • They measure the rate of production in watts
  • It has 3 displays: 1st test screen, 2nd Power taken from the grid and 3rd power injected into the grid
  • Customers only billed for their NET energy use.
  • Only 20-30% of the energy produced by a Solar System, goes into the grid
  • Net metering policies and rates vary by state

Features

  • Class 1 accuracy as per IS and IEC standards
  • Indication for power on, current reversal and ELT
  • Reset backups
  • High surge withstand capability
  • Load Survey (Interval Data)
  • Anti-tamper features
  • Optical port / RS 232 port/ Low Power Radio (optional)

Specifications

Connection 1 Phase 2 Wire
Standards Applicable IS 13779, CBIP 325, IEC 62052-11, IEC 62053-21
Accuracy Class CI 1.0
Rated Voltage 230V / 240V (P-N)
Voltage Variation -40% to +20%
Current Rating 5-20A
Frequency 50Hz
Ingress Protection IP 51

Display

LCD 6 digit backlit display
Display mode Auto-scroll, push-button and high-resolution modes
LED Pulse LED for kWh
