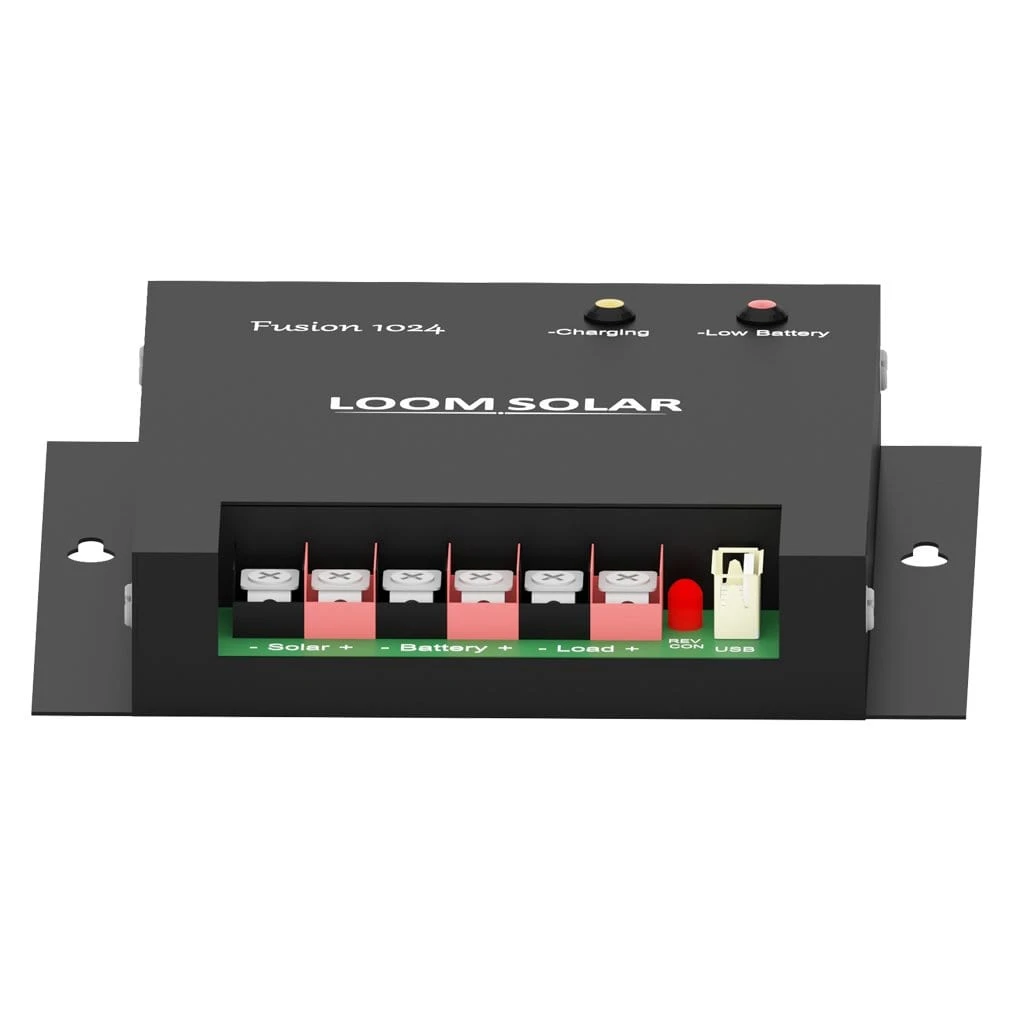

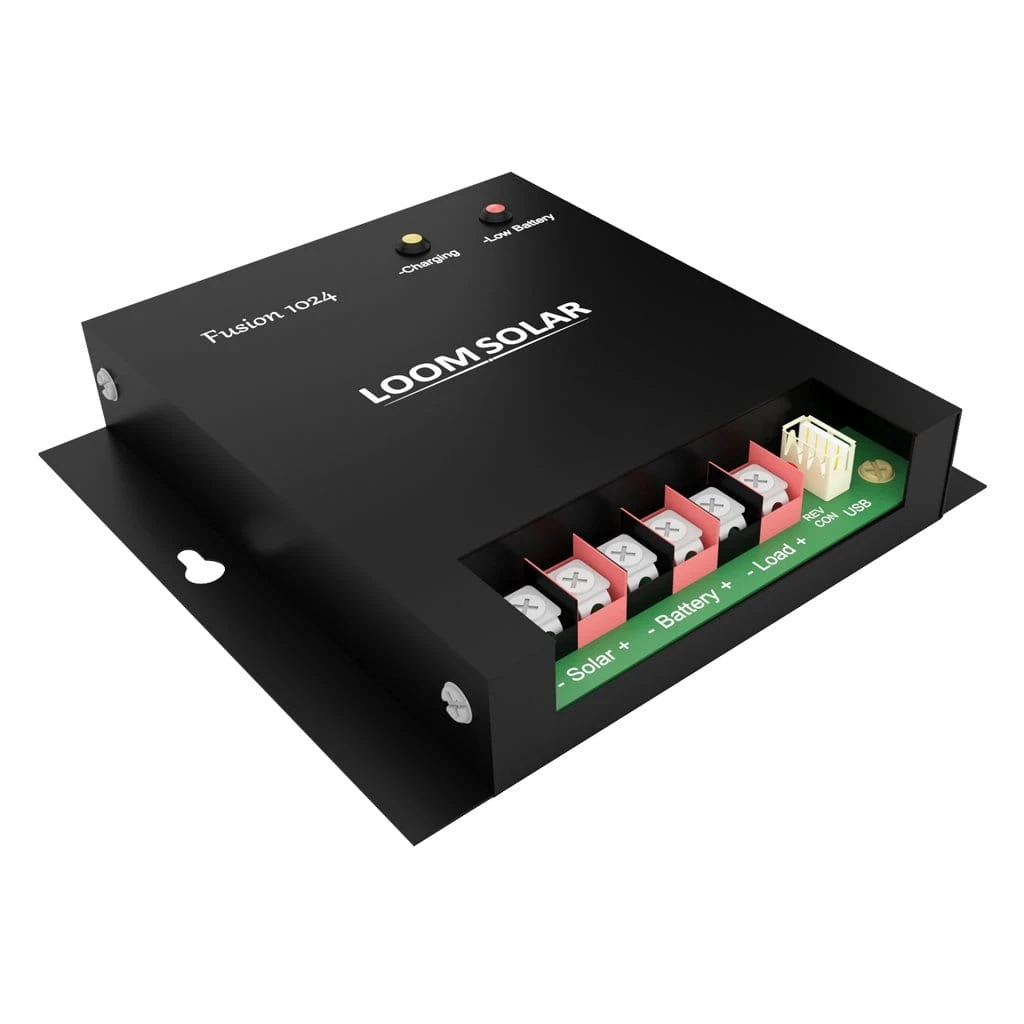

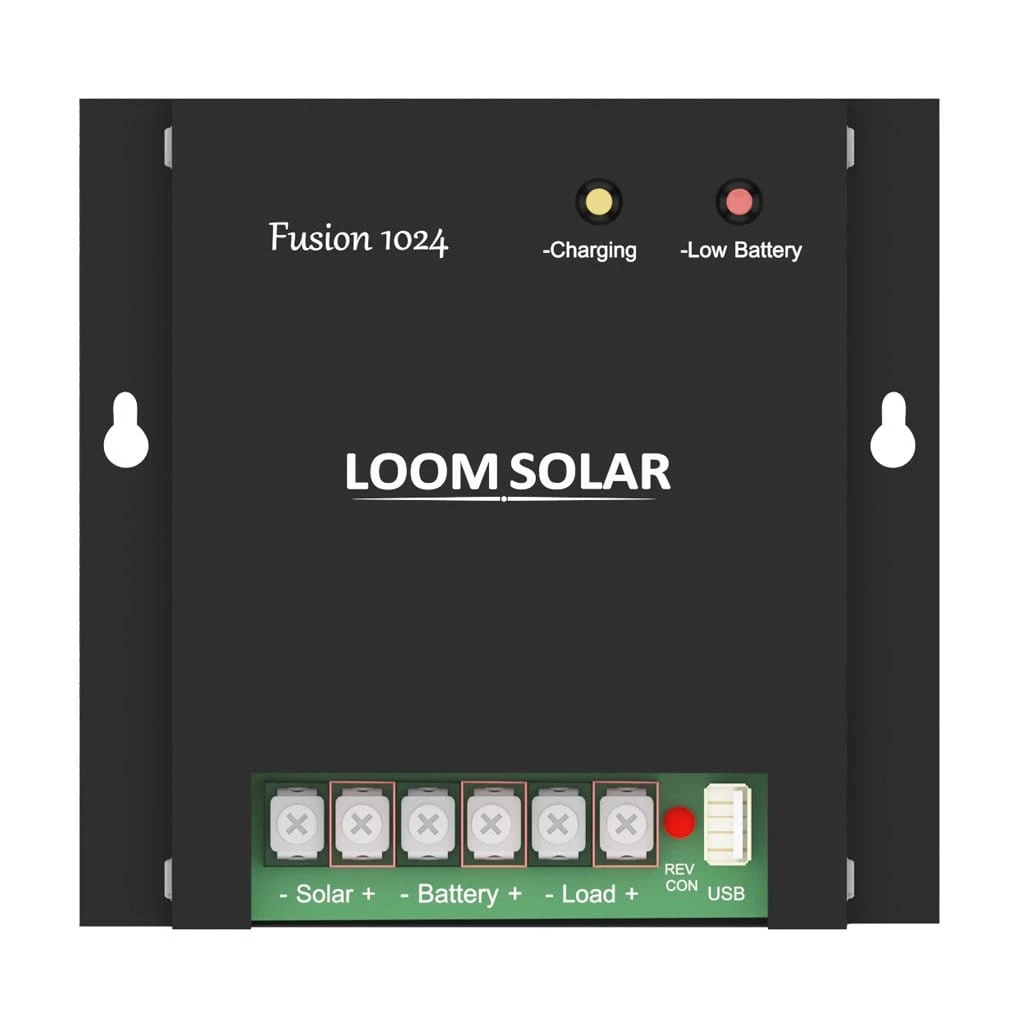

Loom solar, Fusion 1024 charge controller – 10 amp, 12-24V

Original price was: ₹1,350.00.Current price is: ₹1,050.00.

Solar Charge Controller is required to convert Normal Inverter battery into solar Solutions. It is used to charge battery using solar panels. The other use of solar charge controller is to run DC load.

The Charge Controllers are PWM based controllers with 98% efficiency. It has USB charging Option for mobile charging & dusk to dawn feature. Dusk and down feature is used in street light application where lights is switched off in the morning and Automatically it turns on in the evening. It comes with Electronic & Software controlled protections. Maintenance Free. USB Mobile charger Output.

Original price was: ₹1,350.00.Current price is: ₹1,050.00.

Add to cart
Buy Now
Category:

Descriptions

Model Name Fusion 1024
Manufacturer warranty 12 months
Maximum Charging current 10 Amp
Output 12 Volt / 24 Volt DC
Panel Support 200 Wp @ 12V and 400 Wp @ 24 V



Features

  • Automatic selection of 12V / 24V battery
  • 98% efficiency
  • Fuseless electronic & software controlled protections
  • USB port for Mobile charging
  • Option of SMF and lead acid battery selection
  • Load controller with LVD & dusk to dawn feature

Technical

  • PWM based technology
  • Automatic battery voltage selection of 12/24 Volt.
  • In built low voltage disconnect & 20% extra power than rated capacity
  • Supports up to 200 Watt panels on 12 Volt Battery
  • Supports up to 400 Watt Panels for 24 Volt battery .
